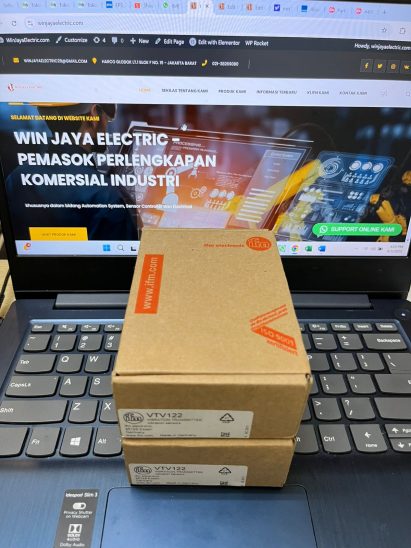

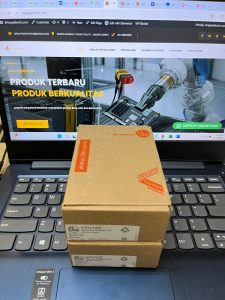

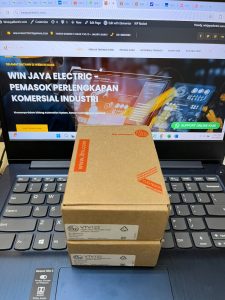

IFM VTV122 Vibration Transmitter

Product characteristics
Measuring range of vibration [mm/s] 0…25; (RMS)
Frequency range [Hz] 10…1000
Application
Application vibration transmitter to ISO 10816
Electrical data
Operating voltage [V] 9.6…32 DC
Protection class III
Sensor type microelectromechanical system (MEMS)
Inputs / outputs
Total number of inputs and
outputs 1
Outputs
Analogue current output [mA] 4…20
Max. load [Ω] < (Ub – 9,6 V) x 50; Ub = 24 V: 720
Measuring/setting range
Measuring range of vibration [mm/s] 0…25; (RMS)
Frequency range [Hz] 10…1000
