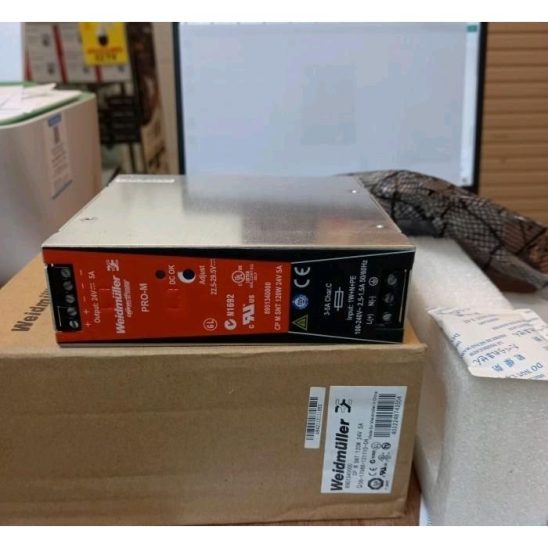

Weidmuller PRO-M CP M 120W 24V 5A Persamaan QUINT-PS/1AC/24DC/5
Weidmuller PRO-M CP M 120W 24V 5A Persamaan QUINT-PS/1AC/24DC/5
Category: weidmuller
ACT20P-CI-2CO-OLP-S 7760054122 WEIDMULLER
Passive isolator, Input : 4-20 mA, Output : 2 x 4-20 mA, (loop powered), Signal distributor, Output current loop powered The ACT20P-CI-2CO-OLP-S fixed passive isolator isolates analogue standard current source signals. An analogue input current signal is converted linearly and doubled to provide two galvanically separated output current signals. The device is powered via the output current loop. Features 3-way galvanic isolation between input, output 1 and output 2.
Weidmuller ACT20P-CI-2CO-S Signal Splitter Transmitter
The non-adjustable DC isolating amplifier ACT20P-CI-2CO isolates analogue standard current signals from a power source or from a 2- or 3-wire sensor. An analogue input current signal is converted linearly and doubled to provide two galvanically isolated output current signals. The power supply is galvanically isolated from the input and output (4-way isolation). Properties HART-compatible for 0.5 – 2.5 kHz The active or passive mA signal inputs are fully galvanically isolated. Operating status display on a front panel LED Galvanic 4-way isolation between input, output and supply.

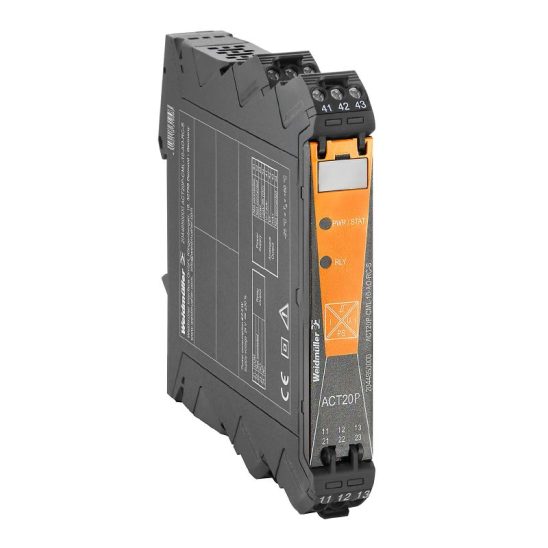

ACT20P-CML-10-AO-RC-S Current-measuring transducer, Limit value monitoring, Input : 0…1/5/10 A, Analogue output, Relay output Item No. 2044850000
ACT20P-CML-10-AO-RC-S Current-measuring transducer, Limit value monitoring, Input : 0…1/5/10 A, Analogue output, Relay output Item No.2044850000

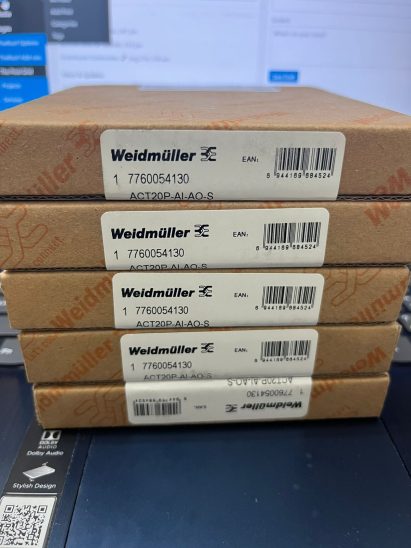

Weidmuller ACT20P-AI-AO-S 7760054130
ACT20P-AI-AO-S Analogue isolating amplifier, Input : I/U universal, Output : I/U universal, Signal converter/isolator, universal

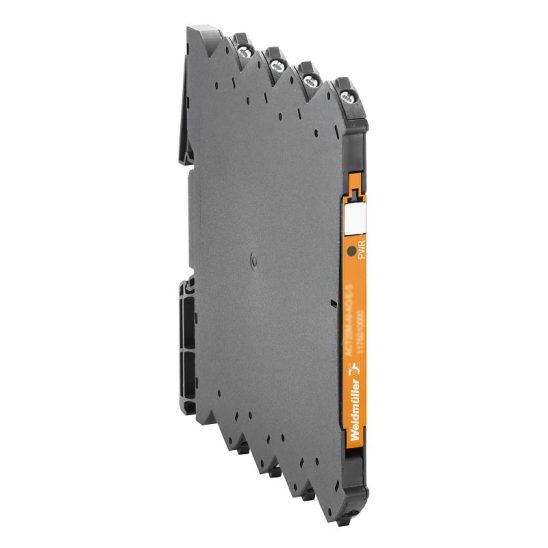

WEIDMULLER ACT20M-AI-2AO-S 11760220000
Input Input current configurable 0…20 mA 4…20mA Input resistance, current 70 Ω Input resistance, voltage 500 kΩ Input voltage configurable 0(2)…10 V 0(1)…5 V Number inputs 1 Sensor Voltage source Current source 2-wire transmitter (without own power supply) Sensor supply 17…28 V DC (@ 20 mA) Voltage drop <1,5 V Voltage drop, current input <1.5 V Output Cut-off frequency (-3 dB) 100 Hz Load impedance current <300 Ω per channel @ max 23mA load impedance voltage ≥ 10 kΩ Number of outputs 2 Output current configurable 0…20 mA 4…20 mA Output voltage, note configurable 0(2)…10 V 0(1)…5 V Type active connected control must be passive General data Accuracy <0.05 % of measuring range Configuration DIP switch Delivery state Setting parameters: Input Configuration: 0…20 mA (loop) Setting parameters: Output 1 Configuration: 0…20 mA Setting parameters: Output 2 Configuration: 0…20 mA Delivery state Input: 0…20 mA (loop) // Output 1: 0…20 mA […]
Weidmuller ACT20M-AI-2AO-S 1176020000 Signal splitter, Configurable, with sensor supply, Input : I / U, Output : 2 x I/U
Universal standard signal splitter 1-channel signal splitter in 6.1 mm width with external power supply, to transmit, isolate and split analogue DC current signals 0/4 to 20 mA and voltage signals 0/2 to 10 V // 0/1 to 5 V. Input and output signals can be configured with DIP switches. Add-on housing for TS35 rail mounting Dimensions: L/W/H 114.3/ 6.1/ 112.5 mm Screw connection / Nominal cross-section 2.5 mm2 Protection degree: IP 20 Input 0/4…20 mA 0/2…10 V or 0/1…10 V Output 0/4…20 mA 0/2…10 V or 0/1…5 V Load resistance < 300 Ohm (Current)/ channel // > 10 kOhm/ voltage Transmission error < 0,05 % v. E. Limit frequency 100 Hz Auxiliary power 24 VDC +/- 30 % Power loss approx. 1.2 W Ambient temperature range -25 °C…+70 °C Isolation EN 61010-1, 3-way isolation up to 2.5 kV AC/DC of all circuits against each other Test voltage 2.5 kV input against output against auxiliary power […]
