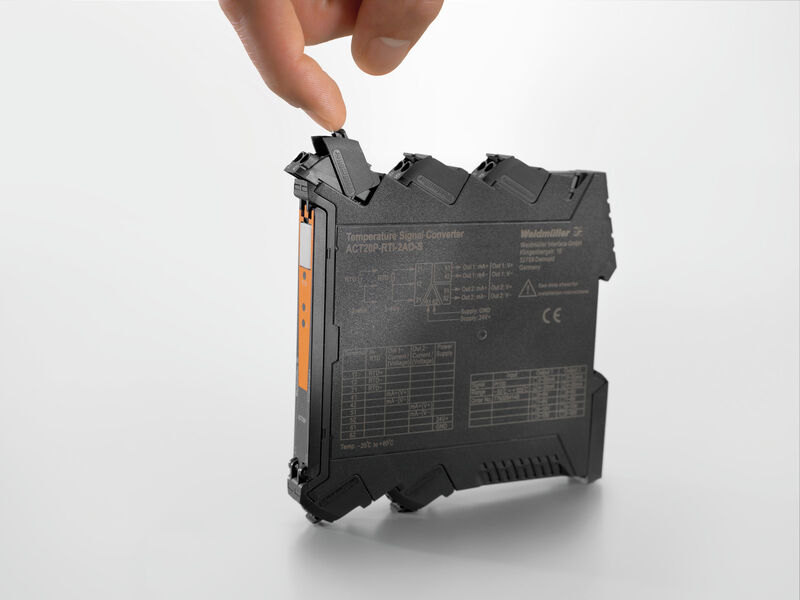

Weidmuller ACT20P-CI-2CO-S Signal Splitter Transmitter

The non-adjustable DC isolating amplifier ACT20P-CI-2CO isolates analogue standard current signals from a power source or from a 2- or 3-wire sensor. An analogue input current signal is converted linearly and doubled to provide two galvanically isolated output current signals. The power supply is galvanically isolated from the input and output (4-way isolation).

Properties

• HART-compatible for 0.5 – 2.5 kHz
• The active or passive mA signal inputs are fully galvanically isolated.
• Operating status display on a front panel LED
• Galvanic 4-way isolation between input, output and supply.
