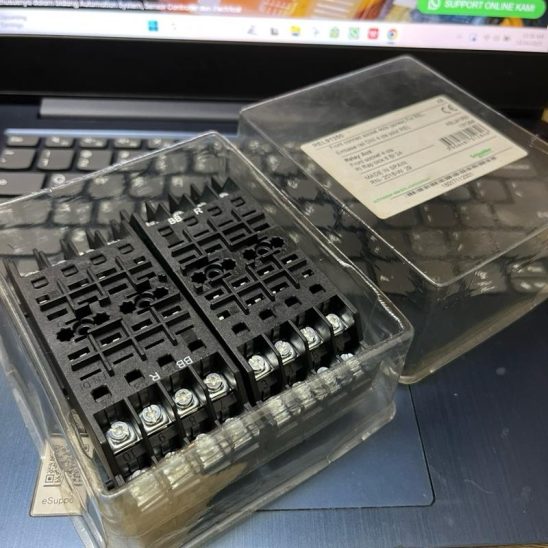

Arteche FN-DE Schneider REL91350 Socket Relay 4CO Lockout Relay , Fast Trip Relay
Arteche FN-DE Schneider REL91350 Socket Relay 4CO Lockout Relay , Fast Trip Relay
Category: Schneider
Schneider MA120 Part Number 50440 Closed toroid for residual current protection MA – Ø 120 mm
This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 250A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 120 millimeters and the weight is 0.450kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 60 millimeters. The maximum cross section per phase (R, S, T, N) is 240mm² for a copper conductor.
Schneider MA40-7041 DuraDrive Two Position Damper Actuator
Schneider MA40-7041 DuraDrive Two Position Damper Actuator
Schneider RXM4LB2ED 48Vdc Relay 4 Contact
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 3A, control circuit voltage of 48 V DC. It also offers a mechanical indicator where an orange flag indicates the relay contact status. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE. RXM relay need to be used with a […]
Schneider TCSESU053FN0 ConneXium Ethernet Switch
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP unmanaged switch has five 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 24V and a power consumption of 2.2W. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 3-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are auto MDI/MDX, automatic negotiation of 10/100Mbps and duplex mode, storage and re-routing of received data and automatic change of polarity. It is an IP30 rated product. Its dimensions are 25mm (width) x 79mm (depth) x 114mm (height) and weighs 0.113kg. This product is certified by CE. It meets CSA C22.2 No 142 and CUL 508 standarts
