Reliable optical distance measurement with long ranges up to 10 m Two switching outputs, one of them programmable as analog output Scalable measuring range and window function Use in applications with background suppression Excellent price/performance ratio
Reliable optical distance measurement with background suppression Two switching outputs, one of them programmable as analog output Scalable measuring range and window function Use in applications with background suppression Excellent price/performance ratio
Untuk suplai daya yang diatur untuk pengontrol, sensor, aktuator, dan elektronik industri Kehilangan daya yang rendah berkat efisiensi tinggi Waktu buffering listrik yang tinggi Desain sangat hemat ruang Cadangan daya yang tinggi
Untuk suplai daya yang diatur untuk pengontrol, sensor, aktuator, dan elektronik industri Kehilangan daya yang rendah berkat efisiensi tinggi Waktu buffering listrik yang tinggi Desain sangat hemat ruang Cadangan daya yang tinggi
Precise linear 4…20 mA output signal High repeatability and low linearity error With long-term stability thanks to high overload protection Robust stainless steel housing for use in harsh industrial environments Wide operating temperature range and high protection rating

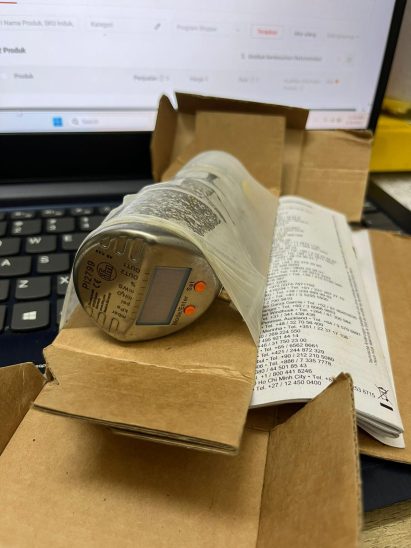

Flush pressure sensor with display PI2799 PI-1-1BREA01-MFRKG/US/ /P Robust stainless steel housing for use in the food and beverage industry Hygienic, flush design Resistant to high-pressure cleaning with aggressive cleaning agents High temperature resistance and high protection rating Programmable analog and switching output
IFM Proximity Type IM5123 Power: 10-36Vdc Sensing Max: 20mm (2cm) Output:PNP No dan NC 4 Wire Connector:M12 4Pin
IFM Smart Flow Meter SM4000 SMR14DXXFRKG/US-100 Out 4-20mA PNP-NPN
Product characteristics Number of inputs and outputs Number of digital outputs: 2 Measuring range -1…10 bar -14.5…145 psi -0.1…1 MPa Process connection threaded connection G 1/4 Internal thread Application System gold-plated contacts Measuring element ceramic-capacitive pressure measuring cell Application for industrial applications Media liquids and gases Medium temperature[°C] -25…80 Min. bursting pressure 150 bar 2175 psi 15 MPa Pressure rating 75 bar 1087 psi 7.5 MPa Vacuum resistance -1000 mbar -0.1 MPa Type of pressure relative pressure; vacuum Electrical data Operating voltage[V] 18…30 DC; (to SELV/PELV) Current consumption[mA] < 35 Min. insulation resistance[MΩ] 100; (500 V DC) Protection class III Reverse polarity protection yes Power-on delay time[s] < 0.3 Integrated watchdog yes Inputs / outputs Number of inputs and outputs Number of digital outputs: 2 Outputs Total number of outputs 2 Output signal switching signal; IO-Link; (configurable) Electrical design PNP/NPN Number of digital outputs 2 Output function normally open / […]
Number of inputs and outputs Number of digital outputs: 2 Measuring range 0…250 bar 0…3620 psi 0…25 MPa Process connection threaded connection G 1/4 Internal thread Application System gold-plated contacts Measuring element metallic thin film cell Application for industrial applications Media liquids and gases Medium temperature[°C] -25…80 Min. bursting pressure 1100 bar 15950 psi 110 MPa Pressure rating 500 bar 7250 psi 50 MPa Vacuum resistance -1000 mbar -0.1 MPa Type of pressure relative pressure Electrical data Operating voltage[V] 18…30 DC; (to SELV/PELV) Current consumption[mA] < 35 Min. insulation resistance[MΩ] 100; (500 V DC) Protection class III Reverse polarity protection yes Power-on delay time[s] < 0.3 Integrated watchdog yes Inputs / outputs Number of inputs and outputs Number of digital outputs: 2 Outputs Total number of outputs 2 Output signal switching signal; IO-Link; (configurable) Electrical design PNP/NPN Number of digital outputs 2 Output function normally open / closed; (configurable) Max. […]
