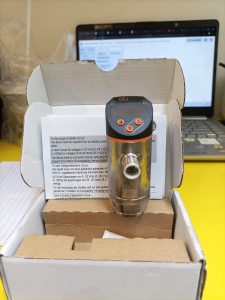

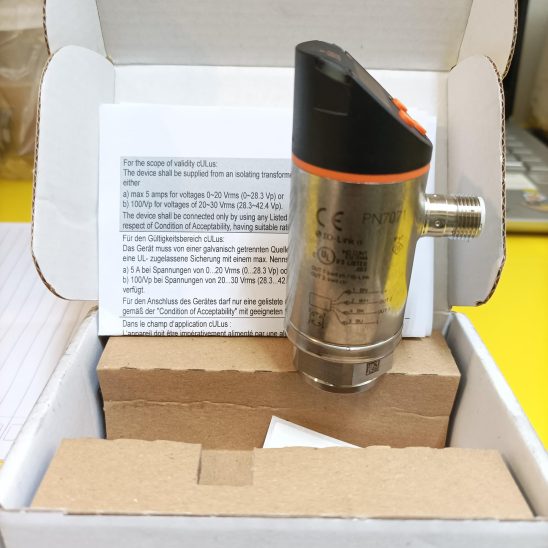

IFM PN7071 Pressure Transmitter 0-250Bar PN 7071 IFM PN-250-SER14-QFRKG/US/V

Number of inputs and outputs Number of digital outputs: 2
Measuring range
0…250 bar 0…3620 psi 0…25 MPa
Process connection threaded connection G 1/4 Internal thread
Application
System gold-plated contacts
Measuring element metallic thin film cell
Application for industrial applications
Media liquids and gases
Medium temperature[°C] -25…80
Min. bursting pressure
1100 bar 15950 psi 110 MPa
Pressure rating
500 bar 7250 psi 50 MPa
Vacuum resistance
-1000 mbar -0.1 MPa
Type of pressure relative pressure
Electrical data
Operating voltage[V] 18…30 DC; (to SELV/PELV)
Current consumption[mA] < 35
Min. insulation resistance[MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Power-on delay time[s] < 0.3
Integrated watchdog yes
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2
Outputs
Total number of outputs 2
Output signal switching signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 150; (200 (…60 °C) 250 (…40 °C))
Switching frequency DC[Hz] < 170
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Measuring/setting range
Measuring range
0…250 bar 0…3620 psi 0…25 MPa
Factory setting / CMPT = 2
Set point SP
2…250 bar 40…3620 psi 0.2…25 MPa
Reset point rP
1…249 bar 20…3600 psi 0.1…24.9 MPa
Min. difference between SP and rP
2 bar 20 psi 0.2 MPa
In steps of
1 bar 20 psi 0.1 MPa
Status_B High Resolution / CMPT = 3
Set point SP
2…250 bar 30…3626 psi 0.2…25 MPa
Reset point rP
1…249 bar 12…3608 psi 0.1…24.9 MPa
Min. difference between SP and rP
2 bar 19 psi 0.2 MPa
In steps of
1 bar 1 psi 0.1 MPa
