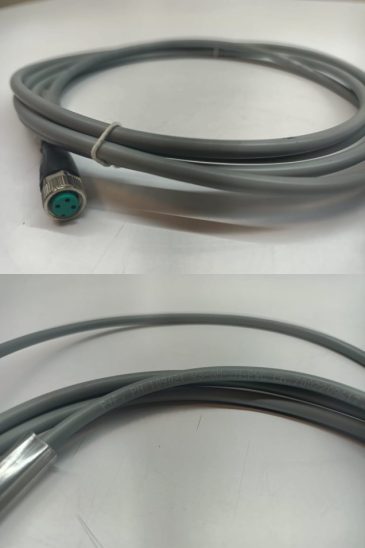

Pepperl Fuchs V3-GM-2M-PVC Female cordset single-ended M8 straight A-coded, 3-pin, PVC cable grey

General specifications
Connector 1
Connection socket
Construction type M8
Style straight
Locking screw connection
Number of pins 3
Coding A-coded
Connector 2
Connection cable end
Electrical specifications
Operating voltage UB max. 48 V AC / 60 V DC
Operating current IB max. 3 A
Conformity
Degree of protection EN 60529
Plug connection connector M8 x 1 : IEC 61076-2-104
Ambient conditions
Ambient temperature
Plug connector -40 … 90 °C (-40 … 194 °F)
Cable, fixed -40 … 70 °C (-40 … 158 °F)
Cable, flexing -5 … 70 °C (23 … 158 °F)
Pollution degree 3
Mechanical specifications
Plug connector
