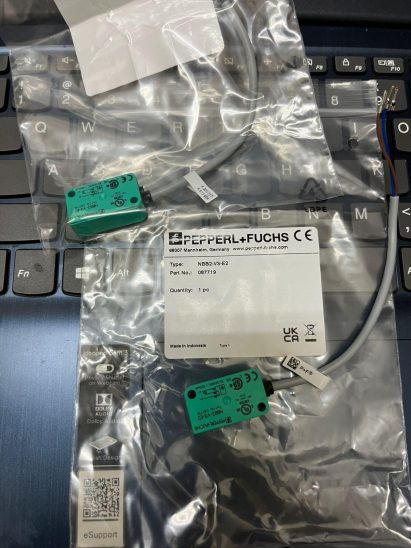

Pepperl Fuchs NBB2-V3-E2 Inductive Sensor

General specifications Switching function Normally open (NO) Output type PNP Rated operating distance sn 2 mm Installation flush Output polarity DC Assured operating distance sa 0 … 1.62 mm Reduction factor rAl 0.35 Reduction factor rCu 0.2 Reduction factor r304 0.7 Output type 3-wire Nominal ratings Operating voltage UB 10 … 30 V DC Switching frequency f 0 … 1000 Hz Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Voltage drop Ud ≤ 3 V
