Pepperl Fuchs FN-LBF-D1.32 Surge Protector FieldConnex Fieldbus

Surge Protector
FieldConnex Fieldbus
F*-LBF-D1.32

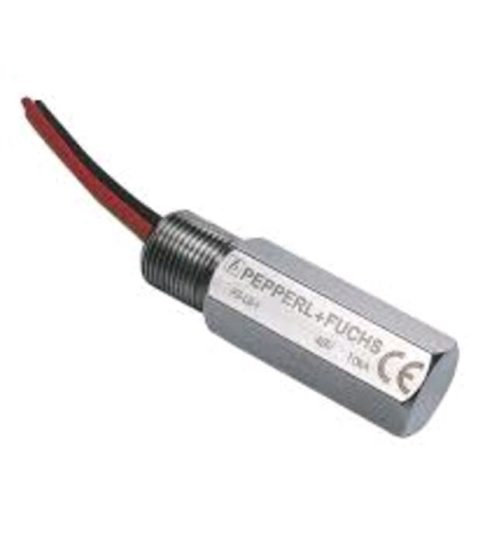

< Surge Protector in stainless steel housing
< Flameproof enclosure (Ex d) protection
< Surge protection for ‘+’ and ‘-‘ fieldbus lead
< Choice of threads 20 mm or 1/2″ NPT
< For FOUNDATION Fieldbus H1 and PROFIBUS PA

Technical Data
General specifications
Design / Mounting Outside installation
Installation in hazardous area Zone 1
Electrical specifications
Rated voltage Ur 32 V
Nominal discharge current (8/20 µs) In
per line 10 kA
total 10 kA
Max. surge current (8/20 µs) Imax 10 kA
Voltage protection level at max. rated current
Line/Line 58 V
Line/Earth 1700 V
Voltage protection level at 1 kV/µsec
