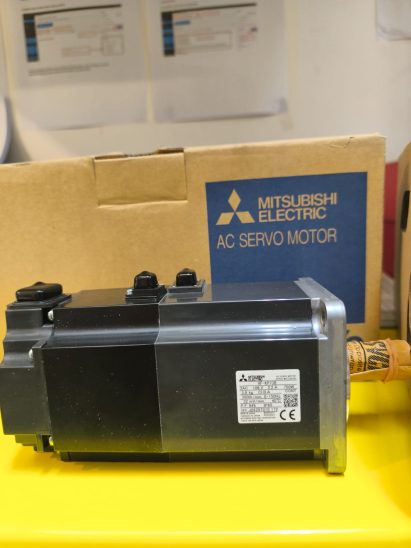

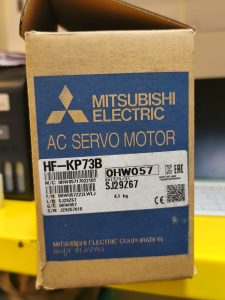

Mitsubishi Servo Motor HF-KP73B

The Mitsubishi HF-KP73B (HFKP73B) is a 750W HF series servo motor with a brake. The appraised torque is 2.4 (N x m) or 340 (oz x in), yet, the torque is at the greatest of 7.2 (N x m) or 1020 (oz x in). The torque, however, while the servo motor with a brake is increasing is able to be 8.36 (N x m) or 1180 (oz x in). Then, the moment of inertia is 1.63 J(x10^-4kg x m) or 8.91 J(oz x in^2). The HF-KP73B servo motor with a brake has a current of 5.2A, but it may be authorized to become 15.6, but while the current is augmenting, it may become 18.2A. The speed of the servo motor with a brake may run normally at 3000rpm, but it can be sanctioned to run at 6000rpm, and may even for a short time reach a speed of 6900rpm.

The HF-KP73B servo motor with a brake may attach to a few servo amplifiers. These are namely, the MR-J-70A, MR-J3-70B, MR-J3-70B-RJ006, and MR-J3-70T servo amplifiers. These servo amplifiers are able to connect generally in the same way to the HF-KP73B servo motor with a brake. The first way is by connecting the encoder to the CN2 port of the servo amplifier with an encoder cable. In order to connect to the power supply to the HF-KP73B servo motor with a brake, a few wires coming from a servo motor power cable may connect to the CNP3 connector of any of the following servo amplifiers.
