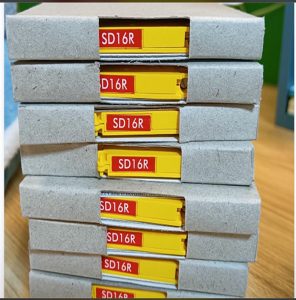

Eaton Crouse Hinds MTL SD16R

MTL SD range
Ultra-slim user-friendly devices for
protecting electronic equipment
and systems against surges on signal
and I/O cabling.
For three wire applications the specially designed SDRTD
(Resistance Temperature Detector) and the SD32T3, (for separately
powered 4-20mA loops) provide full 3-wire protection in a single
compact unit. The recommended choice for the protection of
3-wire pressure transducers on low power circuits is the SD07R3.
For higher bandwidth applications, the SDR range has been
developed to meet the demands of today’s highest speed
communication systems.
120V and 240V AC versions are available for I/O and power
supplies up to three Amps of load current and telephone networks
can be protected by the SDPSTN.
One simple manual operation clamps modules securely onto DIN
rail, which automatically provides the essential high-integrity
earth connection.
‘Top-hat’ (T-section) DIN rail is generally suitable for mounting SD
modules although for adverse environments, a specially-plated
version is available. A comprehensive range of mounting and
earthing accessories can also be supplied, see page 7 for further
details.
• Range of ATEX Certified intrinsically
safe surge protectors
• Ultra-slim space-saving design;
easy installation
• Multistage hybrid protection circuitry – 20kA
maximum surge current
• Range of voltage ratings – to suit all
process I/O applications
• High bandwidth, low resistance, RTD, PSTN
and 3-wire transmitter versions available
