PEPPERL FUCHS NBB15-U1K-N0 Inductive sensor
15 mm flush Sensor head bidirectional and rotatable NAMUR output Polarity reversal protected
Category: pepperl+fuchs
Pepperl Fuchs KCD2-SR-EX1.LB Switch Amplifier
1-channel isolated barrier 24 V DC supply (Power Rail) Dry contact or NAMUR inputs Usable as signal splitter (1 input and 2 outputs) Relay contact output Fault relay contact output Line fault detection (LFD) Housing width 12.5 mm Up to SIL 2 (SC 3) acc. to IEC/EN 61508
PEPPERL FUCHS KFD0-RO-EX2 Relay Module
2-channel isolated barrier 24 V DC supply (loop powered) Logic input 15 V DC … 30 V DC, non-polarized Relay contact output Up to SIL 3 acc. to IEC/EN 61508
PEPPERL FUCHS KFD2-SCD2-EX2.LK SMART Current Driver
2-channel isolated barrier 24 V DC supply (Power Rail) Current output up to 650 Ω load HART-IP and valve positioner Line fault detection (LFD) Accuracy 0.1 % Up to SIL 2 (SC 3) acc. to IEC/EN 61508
PEPPERL FUCHS UB500-18GM75-U-V15 Ultrasonic sensor
Analog output 0 … 10 V Measuring window adjustable Selectable sound lobe width Program input Synchronization options Deactivation option Temperature compensation Very small unusable area

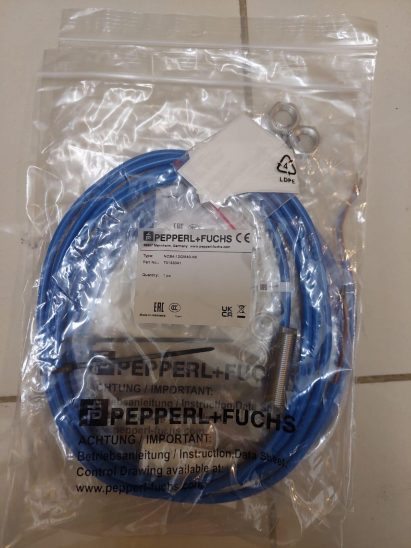

PEPPERL FUCHS NCB4-12GM40-N0 Inductive sensor
4 mm flush Usable up to SIL 2 acc. to IEC 61508 NAMUR output Stainless steel housing Polarity reversal protected

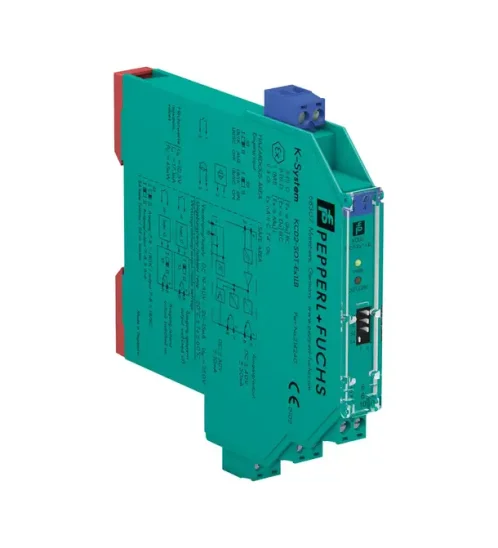

Pepperl Fuchs KCD2-SOT-EX1.LB Switch Amplifier
1-channel isolated barrier 24 V DC supply (Power Rail) Dry contact or NAMUR input 2 passive transistor outputs Usable as signal splitter (1 input and 2 outputs) Reversible mode of operation Line fault detection (LFD) Housing width 12.5 mm Up to SIL 2 (SC 3) acc. to IEC/EN 61508
Pepperl Fuchs KCD2-UT2-EX1 Universal Temperature Converter
1-channel isolated barrier 24 V DC supply (Power Rail) Thermocouple, RTD, potentiometer or voltage input Current output 0/4 mA … 20 mA Sink or source mode Configurable by PACTware Line fault (LFD) and sensor burnout detection Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511
PEPPERL FUCHS KFD0-CS-1.50 Repeater
1-channel signal conditioner 24 V DC supply (loop powered) Current input/output 4 mA … 20 mA transmitter power supply Accuracy 0.1 % Reverse polarity protection Up to SIL 2 acc. to IEC/EN 61508
Pepperl fuchs KCD2-SR-EX2 Switch Amplifier
2-channel isolated barrier 24 V DC supply (Power Rail) Dry contact or NAMUR inputs Relay contact output Line fault detection (LFD) Housing width 12.5 mm Up to SIL 2 (SC 3) acc. to IEC/EN 61508
